# Import modules
import numpy as np
import matplotlib.pyplot as plt74 Plant available water
Keywords
plant available water, field capacity, wilting point, integral energy
75 Plant Available Water
In the early 1900s, soil physics started to emerge as a prominent discipline with the goal of better understanding the soil-plant-atmosphere continuum. At that time, the knowledge about the energy-state of soil water was transitioning from a qualitative and discrete classification system (e.g. gravitational, capillary, and hygroscopic) to a quantitative and continuous framework.
An upper and lower soil water content was devised to represent the fraction of soil water that is available to plants, particularly agricultural crops. These concepts are known as Field Capacity (FC) and Permanent Wilting Point (WP) and represent a basic, yet practical, framework that guided irrigation decisions and crop models for many decades. For a specific layer, the plant available water using this approach is computed as:
PAW = (\theta_{fc} - \theta_{wp}) \Delta z
where \theta represents the volumetric soil water content and \Delta z the thickness of the soil layer under consideration.
In recent years more sophisticated frameworks emerged to address some of the limitations of the previous method to compute available soil water. For instance, the previous method assumes that the same amount of work is required to extract a unit of soil water along the spectrum from FC to WP. Two methods that emerged as a substitute for the previous method are: 1) Integral water capacity (Groenevelt et al., 2001) and 2) Integral energy (Minasny and McBratney, 2003).
Integral energy
The integral energy approach aims at characterizing the total amount of work required to extract a given amount of water from the soil. This approach can be useful to better understand plant responses to soil water stress since it does not assume equal availability of water between two potentials like the traditional available water capacity approach.
E_i = \int_{\theta_i}^{\theta_f} \frac{1}{\theta_i - \theta_f} \psi(\theta) \; d\theta
We will use the soil water retention model proposed by van Genuchten (1980) since it is the most familiar for students in soil science.
We will also use the clay and silty clay soil in the original manuscript published by Minasny and McBratney 2003 as an example. The soil water retention curves of these two soils have similar values of volumetric water content at -10 J/kg and -1500 J/kg, but the concavity between these two points is different, which should result in similar plant available water using the traditional approach, but different amount of work between these two points using the integral energy approach.
# Define soil water retention model (van Genuchten 1980)
model = lambda x,alpha,n,theta_r,theta_s: theta_r+(theta_s-theta_r)*(1+(alpha*x)**n)**-(1-1/n)# Range in matric potential
fc = 10 # Field capacity (J/kg)
wp = 1500 # Wilting point (J/kg)
N = 10000
# Define absolute values of matric potential
matric = np.logspace(np.log10(fc), np.log10(wp), N) # Krasnozem clay (Table 1 Minasny and McBratney, 2003)
theta_clay = model(matric, 1.22, 1.34, 0.23, 0.64)
# Volumetric water content values at field capacity and wilting point
fc_clay = theta_clay[0] # Field capacity, upper limit
wp_clay = theta_clay[-1] # Wilting point, lower limit
# Plant available water
paw_clay = fc_clay - wp_clay
print('Clay at -10 J/kg:', round(fc_clay,3))
print('Clay at -1500 J/kg:', round(wp_clay,3))
print('Clay Plant Available Water Capacity',round(paw_clay,3), "cm^3/cm^3")Clay at -10 J/kg: 0.404
Clay at -1500 J/kg: 0.262
Clay Plant Available Water Capacity 0.142 cm^3/cm^3# Xanthozem silty-clay (Table 1 Minasny and McBratney, 2003)
theta_silty_clay = model(matric, 0.05, 1.1, 0, 0.42)
# Volumetric water content values at field capacity and wilting point
fc_silty_clay = theta_silty_clay[0] # Field capacity, upper limit
wp_silty_clay = theta_silty_clay[-1] # Wilting point, lower limit
# Plant available water
paw_silty_clay = fc_silty_clay - wp_silty_clay
print('Silty-clay at -10 J/kg:', round(fc_silty_clay,3))
print('Silty-clay at -1500 J/kg:', round(wp_silty_clay,3))
print('Silty clay Plant Available Water Capacity',round(paw_silty_clay,3), "cm^3/cm^3")Silty-clay at -10 J/kg: 0.406
Silty-clay at -1500 J/kg: 0.273

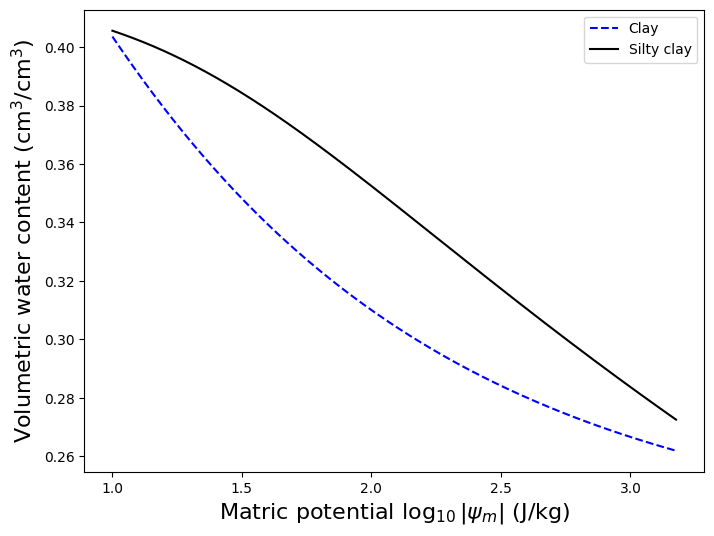

Silty clay Plant Available Water Capacity 0.133 cm^3/cm^3plt.figure(figsize=(8,6))
plt.plot(np.log10(matric), theta_clay, '--b', label='Clay')
plt.plot(np.log10(matric), theta_silty_clay, '-k', label='Silty clay')
plt.xlabel(r"Matric potential $\log_{10}|\psi_m|$ (J/kg)", size=16)
plt.ylabel("Volumetric water content (cm$^3$/cm$^3$)", size=16)
plt.legend()
plt.show()
Soil water storage
# Total storage clay between -10 and -1500 J/kg
W_clay = 1/np.abs(fc - wp) * np.trapz(theta_clay, matric)
print(W_clay)0.2768349634688867# Total storage silty clay between -10 and -1500 J/kg
storage_silty_clay = 1/np.abs(fc - wp) * np.trapz(theta_silty_clay, matric)
print(storage_silty_clay)0.3001711916723065Energy
Because theta in our code is in decreasing order, the \Delta x during the trapezoidal integration will result in negative values. So, I swapped the minuend and subtrahend from \theta_i - \theta_f to \theta_f - \theta_i to reverse the sign.
# Integral energy
theta_i = theta_clay[0]
theta_f = theta_clay[-1]
E_clay = 1/(theta_f - theta_i) * np.trapz(matric, x=theta_clay)
print(round(E_clay), 'J/kg are required to go from FC to WP')167 J/kg are required to go from FC to WPtheta_i = theta_silty_clay[0]
theta_f = theta_silty_clay[-1]
E_silty_clay = 1/(theta_f - theta_i) * np.trapz(matric, x=theta_silty_clay)
print(round(E_silty_clay), 'J/kg are required to go from FC to WP')319 J/kg are required to go from FC to WPReferences
